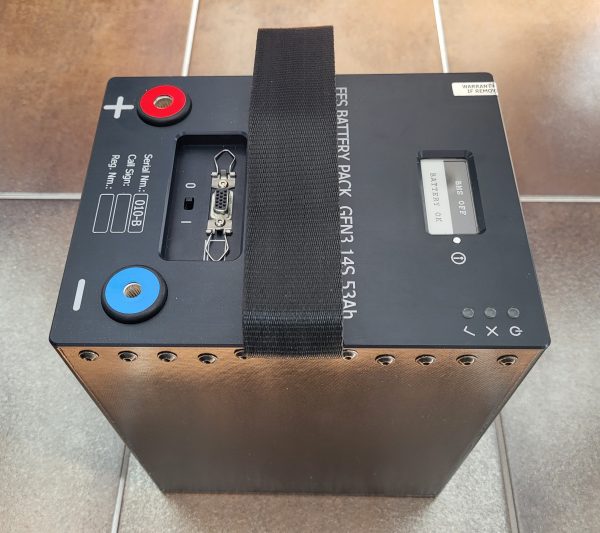

Battery Pack FES GEN3 14S 53Ah
Original price was: 7.250,00 €.6.250,00 €Current price is: 6.250,00 €.pair Incl. Tax: 7.625,00 €
Price for a pair of battery packs.
This is FES Battery Pack developed especially for FES application, with about 30% more energy storage capacity compared to standard FES GEN2 14S 40Ah battery packs.
FES GEN3 14S 53Ah Battery Packs are developed especially for FES application, however for bureocratic reasons suitable only for non-EASA gliders.
There are 14 cells, all wired in serial (14S) in each battery pack. Average capacity of each cell is 53Ah. A pair of battery packs is required in a FES system. First pack is marked as A and second pack as B.
We are using high power cells, produced by global leader of Lithium battery industry – Kokam Co.
Each Battery pack is equipped with BMS (Battery Management System) circuit board, which monitors its operation. New GEN3 feature additional e-ink display – which indicates state of charge, and G-load sensor, which monitors potential mechanical abuse.
AVAILABLE CHARGERS:
- Standard 600W small power charger: FES KOP602
- Optional 1200W middle power charger: FES KOP1001
- Optional 2000W high power charger (supports also US 110V~): FES KOP2300
- Optional 350W small power charger: FES Travel charger for 14S
Technical data
| Battery pack type | FES GEN3 14S 53Ah |
| Weight of single battery pack | 18,1 kg |
| Box dimensions (WxLxH), without terminals and ventilators | 174 x 220 x 260 mm |
| Cells manufacturer | Kokam, South Korea |
| Electrochemical system | NMC (LiMnNiCoO2) |
| Cells type | SLPB120216216 |
| Average capacity of each cell | 53 Ah |
| Number of cells | 14 |
| Energy storage capacity | 2.75 kWh |
| Maximum total voltage | 58.3 V |
| Minimum total voltage | 42 V |
| Maximum current | 250 A |
| Max balancing current per cell | 1 A |
| Internal BMS type | FES-BMS-2Q |
